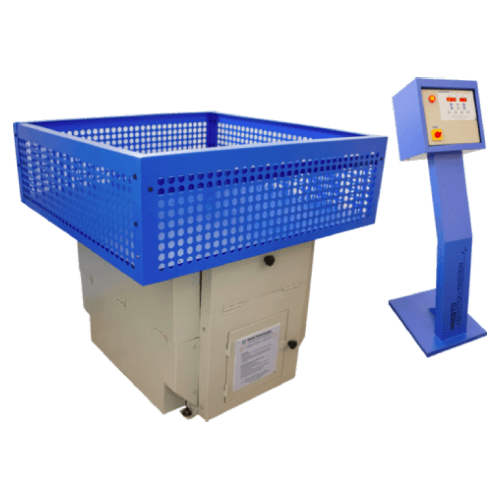

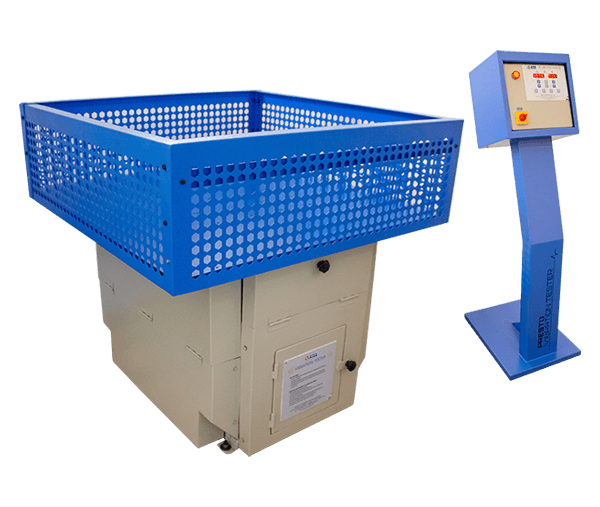

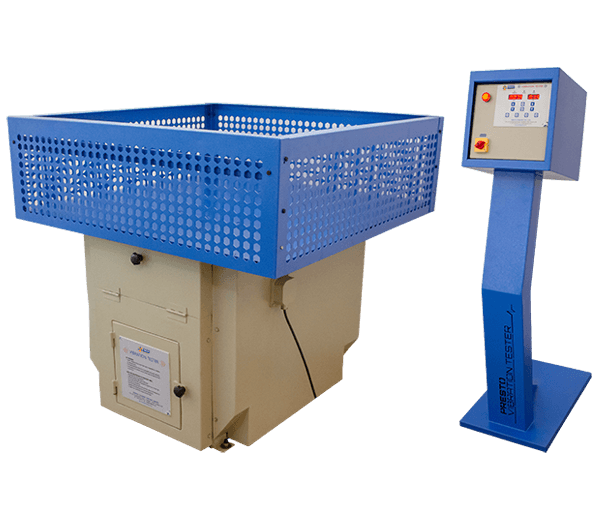

When transporting packages, it's crucial to assess their ability to with stand vibrations and jolts. The vibration table facilitates this evaluation, allowing for testing the strength and protection of containers. This instrument enables vibration testing of various structures and dynamic transducer calibration. By simulating vehicle movements, vibration simulation efficiently identifies potential product damage.
The Vibration Chamber, ideal for consistent testing of compact goods, offers flexibility in testing procedures. Operating at an amplitude of 25mm and a frequency of 120 strokes per minute, this machine is constructed from sturdy cast iron and features railings for secure sample placement.
During transportation via road, rail, sea, or air, packages endure diverse vibrations and jolts, making it challenging to replicate these conditions accurately. However, the machine closely mimics these vibrations in laboratory settings. Vibration testing anticipates how packages will fare in distribution systems, assessing container strength and content protection.
Digital LED Display
Highly accurate test results under various frequency settings
Sample Slippage protection by rail on all sides
Strong Base plate
Adjustable Frequency
Feather Touch Control
| Specification | Details |
|---|---|
|
Maximum Load Capacity |
100 Kg |
| Display |
LED (Digital) |
|
Table Size |
1000mm x 1000mm |
|
Amplitude |
25 mm peak-to-peak |
|
Power | 220V, Single Phase, 50 Hz |
|
Frequency |
2Hz to 6Hz |
|
Testing Models | Vertical synchronous, Vertical asynchronous, Swivel synchronous, Swivel asynchronous |
|
Angle in Swivel Model |
0o, 30o, 60o, 90o |
|
Timer | Up to 99.9 min or 99.9 hrs |
|
Swivel Testing Model |
Angle changed according to changeable sprockets provided in the machine |
Safety Rail on all sides
Material Mild Steel
Finish Powder coated with grey & Blue
combination nish and bright chrome
zinc plating for corrosion-resistant nish
Dimensions 840 mmx 840mm x 980mm
