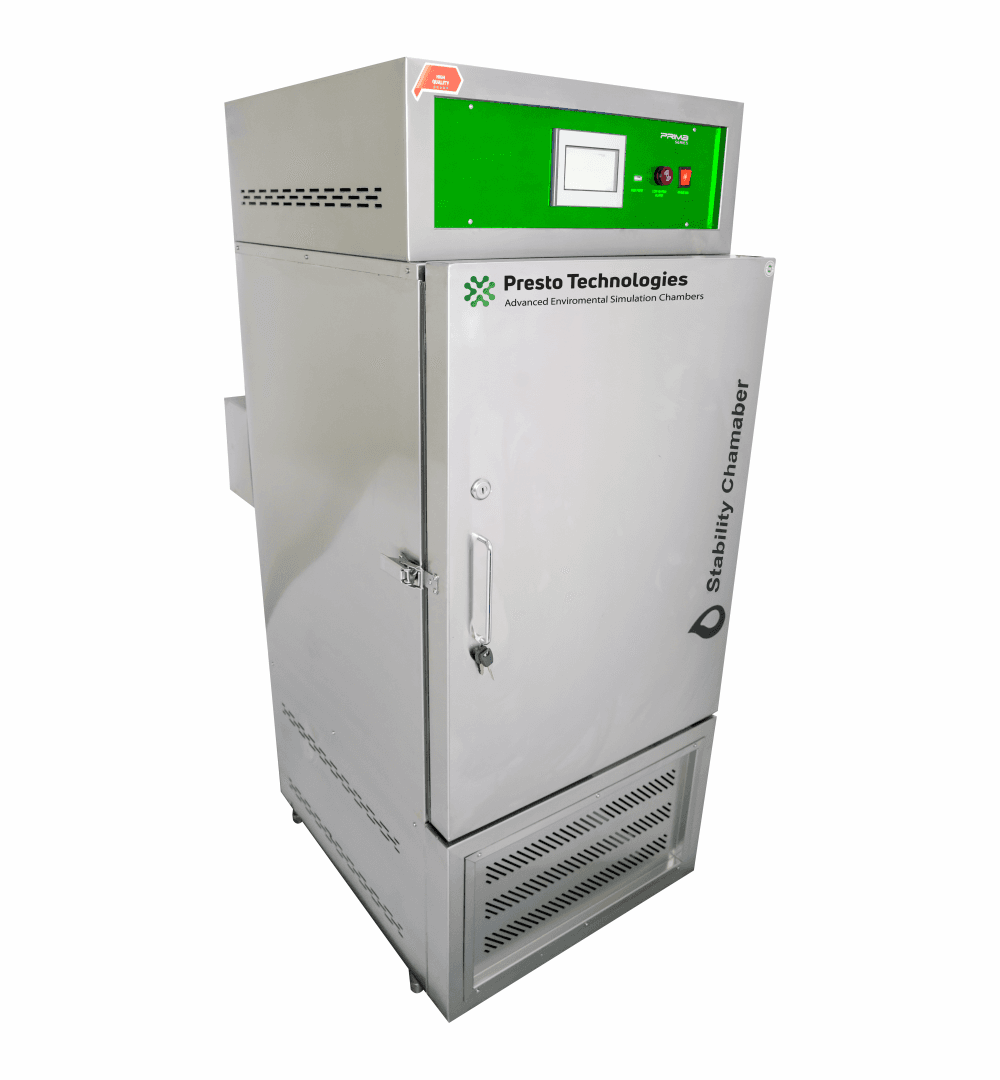

Stability Test Chamber

Stability Test Chambers are carefully designed and built to ensure consistent performance and a professional appearance.

• They feature a unique air circulation system, refrigeration system, humidity control, and a full-view observation glass door with trays for easy access to samples.
• The Control Panel includes a microprocessor-based PID controller with auto-tuning capability, ensuring precise control of temperature and humidity.
• For safety, there's a thermostatic safety system in place, along with a low water level cutoff for the steam generation system.
• Additionally, there's a dedicated safety system to shut down the humidity system and the chamber in case of temperature or humidity deviations, with audible and visual alarms for immediate notification.
• Electrical safety fuses provide protection against short circuits, ensuring safe operation at all times.

• The stability test chamber has been equipped with different testing capabilities and is capable of performing different tests on the samples.
• These chambers are used in different industries for evaluating stability in hot or cold, humid conditions, and when exposed to light.
• With the help of these chambers, you can easily simulate different environmental conditions for testing the shelf life of the specimen.
• It consists of energy-efficient cooling and heating fans and compressors used to decrease the costs while running for longer periods during product testing.
• You will get different temperature and humidity ranges incorporated in these chambers to ensure accuracy in test results.

• Capacity: 150 liters (Customisable on Request)
• Display: LED (Digital)
• Accuracy: Temp. ± 2ºC / Humidity ± 5%
• Least Count/Resolution Temp / Humidity: 0.1ºC / 1%
• Power: 15A, 220V , Single phase, 50 Hz
• Temperature Range: 15ºC to 60ºC
• Humidity Range: upto to 95% RH
• Timer: 999Hr (Changeable to Min. as per request)
• Water Level Low: Alarm output

• No. of Sample racks: 2
• Handle: Yes
• Wet Heater: 1 Kw, 1 no.
• Dry Heater: 500 Watt, 1 no.
• Temperature Sensor: 1 (PT-100)
• Humidity Sensor: 1 (RH)
• Movement Castor: Wheels
• Material: Stainless Steel (Inner & outer body)
• Finish: Stainless Steel combination finish for corrosion resistant

Dimensions: Inner : 455 x 455 x 710 mm & Outer : 660 x 930 x 1515 mm

A stability test chamber is a device used for testing and analysis of products in varying temperature and humidity conditions. It is used across various industries including pharmaceutical, chemical, cosmetic, etc to assess the stability and shelf life of products. These chambers help manufacturers determine the product’s performance and stability in controlled environmental conditions. A stability test chamber helps industries maintain required safety and quality standards by simulating real-world conditions.

A Stability Test Chamber works by maintaining the specific temperature and humidity requirements. Different materials and products are evaluated in certain conditions to measure their performance and shelf life. It works on the principle that when temperature increases, the relative humidity decreases as air sustains higher humidity. In these conditions, different materials including pharmaceutical products like drugs are tested to analyze their behavior.

The price of a stability test chamber varies from INR 1,25,000 Lacs to 5,000,00 Lacs depending on the size and temperature ranges. A stability chamber equipped with different testing capabilities that test products under controlled temperature, humidity, and lighting conditions. This test chamber is used for various industries like pharmaceuticals, packaging, cosmetics, chemicals, etc and price may vary accordingly.

The size and temperature range of the stability test chamber is the most important factor when choosing the right chamber. Keep the following points in mind while selecting the chamber –

• Size of the chambers
• Products being tested
• Temperature range
• Humidity range
• Control panel
• Ease of use
